Produktdetails:
Zahlung und Versand AGB:
|
| PWB-Größe: | Länge 250mm*any | PWB-Klammer; ing: | justierbarer Druck pneumatisch |
|---|---|---|---|
| System: | windows7 | Software: | r&d unabhängig |
| Anzeige: | Touch Screen Monitor | Eingabegerät: | Tastatur, Maus |
| Nein der Kamera: | 5 | Energie: | 380AC 50HZ |
| Energie consmption: | 5KW | Montagemodus: | Gruppieren Sie Nehmencentstock, Centnehmen-Centstock |
| Komponenten-Raum: | 0.2mm | Zufuhrstationen: | 32pcs |
| Düsen: | 32pcs | Montagegeschwindigkeit: | 200000CPH |
| Montage-Höhe: | 13mm |
product details
Components: LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application:LED display

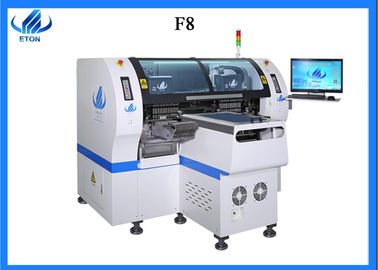

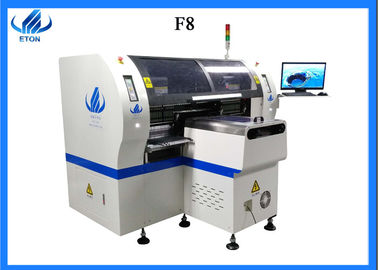

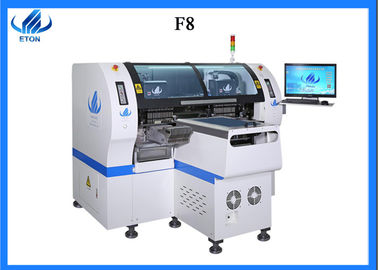

product Technical parameters of high speed pick and place machine
| Model number | HT-F8 |
| Dimension | 1600*1900*1550mm |
| PCB size | 80*110～345*600mm |
| PCB thickness | 0.5～5mm |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | LED monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <15mm |
| mounting speed | 150000CPH |
| components space | 0.2mm |
| NO.of feedings station | 32pcs |
| NO.of nozzles | 32pcs |
| power | 220AC 50HZ |
| power consumption | 5KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | Auto online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | servo motor |
| feeding way | electric feeder with double motor |
product parts of smt mounter
Packing & delivery of smt mounter machine
Company profile
Our Our certificates and certifications
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
SMT equipment to carry out regular inspection and maintenance is also a strong guarantee to ensure the full play of its effectiveness. Many companies often ignore this point in the production process because of the heavy production tasks. Once the equipment can not be properly produced due to failure, the loss caused by its shutdown is far greater than the cost of regular equipment shutdown inspection and maintenance. Therefore, it is necessary to emphasize the regular scientific inspection and maintenance of the equipment so that the equipment is in good condition.
All in all, the method of improving the efficiency of SMT placement machine production line is still the same as the quality management method in general, considering from human, machine, material, method, ring. But improving the efficiency of the SMT placement machine production line focuses on the machine and human factors.
