Produktdetails:
Zahlung und Versand AGB:
|
| PWB-Größe: | Länge 250mm*any | PWB-Klammer; ing: | justierbarer Druck pneumatisch |
|---|---|---|---|
| System: | windows7 | Software: | r&d unabhängig |
| Anzeige: | Touch Screen Monitor | Eingabegerät: | Tastatur, Maus |
| Nein der Kamera: | 5 | Energie: | 380AC 50HZ |
| Energie consmption: | 6kw | Montagemodus: | Gruppe der Gruppe des Stockes |
| Komponenten-Raum: | 0.2mm | Zufuhrstationen: | 64PCS |
| Düsen: | 64PCS | Montagegeschwindigkeit: | 200000CPH |
| Montage-Höhe: | 13mm |
1.product details

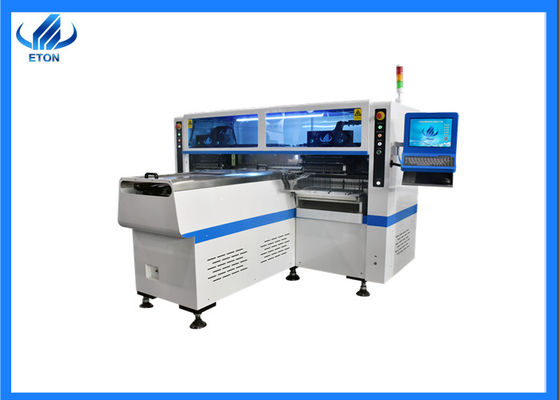

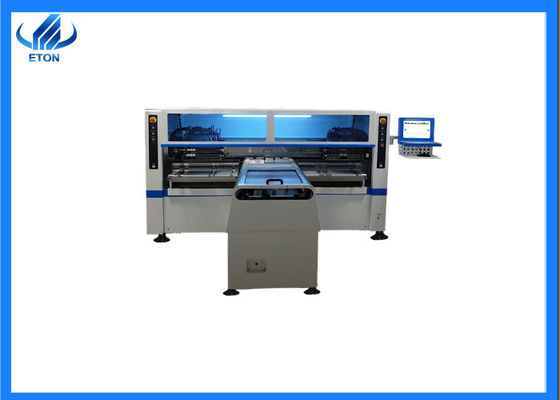

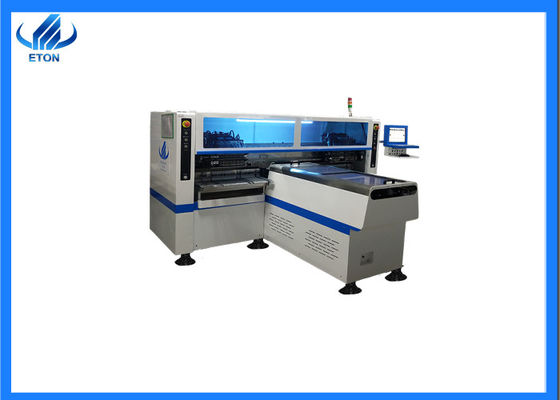

HT-X9 is dual-arm magnetic levitation LED high speed pick and place machine.the capacity reach 200000CPH.It is Suitable for 0.5M,1M Strip, Tube and Panel Light.it can mount LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
2.product Technical parameters of high speed pick and place machine
| Model number | HT-X9 |
| Dimension | 2450*2100*1550mm |
| PCB size | 250mm*any length |
| PCB thickness | 0.5～1.5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 64pcs |
| NO.of nozzles | 64pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | any length |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| Air Force | 0.5mpa |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4. The warranty
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
5.product parts of smt mounter
6.Packing & delivery of smt mounter machine
7.Company profile
Business terms:
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
8.Our Our certificates and certifications
9. trade show
10. FAQ
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Execute MMI, program to initialize automatically and check the status of each module of the device.
press the READY" button.
on the teaching box or MMI screen click Home" key to return to the origin.
In order to improve the precision of the mount, the heater is operated about 10 minutes before the start of the operation.
