Produktdetails:
Zahlung und Versand AGB:
|
PWB-Größe: | 80*350mm~350*1200mm | PWB-Klammer; ing: | justierbarer Druck pneumatisch |
---|---|---|---|
System: | windows7 | Software: | r&d unabhängig |
Anzeige: | Touch Screen Monitor | Eingabegerät: | Tastatur, Maus |
Nein der Kamera: | 5 | Energie: | 380AC 50HZ |
Energie consmption: | 6kw | Montagemodus: | Gruppe der Gruppe des Stockes |
Komponenten-Raum: | 0.2mm | Zufuhrstationen: | 68PCS |
Düsen: | 68PCS | Montagegeschwindigkeit: | 200000CPH |
Montage-Höhe: | 13mm |
1.product details
Producing with 2~4 types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.

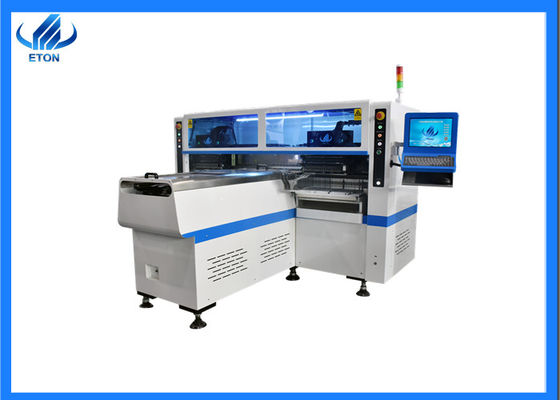

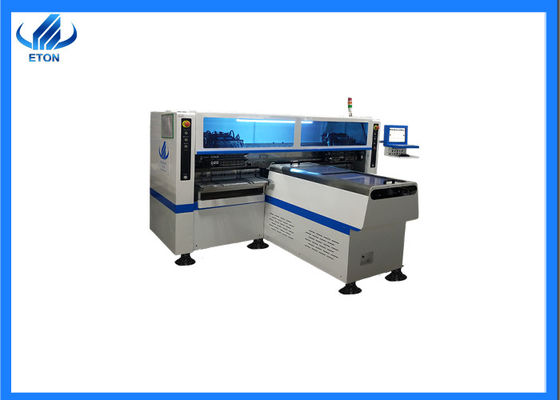

2.product Technical parameters of high speed pick and place machine
Model number | HT-F9 |
Dimension | 2700*2120*1550mm |
PCB size | 1200*330~80*330mm |
PCB thickness | 0.5~5mm |
PCB clamping | adjustable pressure pneumatic |
mounting mode | group to take and group to mount |
system | windows 7 |
display | touch screen monitor |
input device | keyboard,mouse |
NO.of camera | 5 sets of imported camera |
mounting precision | ±0.03mm |
mounting height | <13mm |
mounting speed | 200000CPH |
components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
components space | 0.2mm |
NO.of feedings station | 68pcs |
NO.of nozzles | 68pcs |
power | 380AC 50HZ |
power consumption | 6KW |
operating environment | 23℃±3℃ |
conveyor transmission | MAX length:1200mm |
transmission speed | >500mm/sec |
transmission direction | single(left→right,right→left) |
transmission mode | online drive |
position mode | optical |
air pressure | >5.0kg/c㎡ |
electrical control | independent research and development by ETON |
motion control card module 1set | independent research and development by ETON |
X.Y axis drive way | high-end magnetic linear motor+servo motor |
feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4. The warranty
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
5.Packing & delivery of smt mounter machine
6.Company profile
Business terms:
Accepted delivery terms | EXW, FOB, CIF, CFR |
Accepted payment currency | USD,CNY |
Accepted payment type | L/C, T/T |
Nearest port | Shenzhen |
7.Our Our certificates and certifications
8. trade show
9. FAQ
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Generally speaking, high-speed placement machine is used to mount resistance, capacitance and small three-tube components, the pursuit of mount speed, mount speed is much faster, multi-function placement machine is used to mount pin density high profile components, such as IC, special components.The multi-function placement machine can attach the components attached to the high-speed placement machine, but the high-speed placement machine can not attach special-shaped components with high pin density. The main structure of high-speed placement machine is turret type, and the main structure of universal placement machine is arch frame type. Generally large SMT patch processing is to use these two kinds of patch machines together. If the production volume is not large, you can only buy multi-function placement machine for use.
