multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor
multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

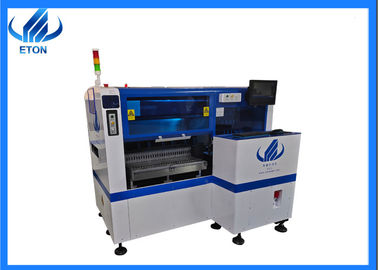

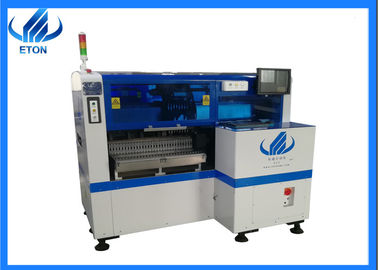

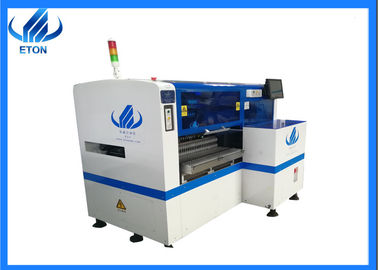

Großes Bild :  multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

Produktdetails:
Herkunftsort: CHINA
Markenname: eton
Zertifizierung: ccc,ce,sira
Modellnummer: HT-E5S
Zahlung und Versand AGB:
Min Bestellmenge: 1 Einheit
Preis: $43000/unit
Verpackung Informationen: Wasserdichte materielle Verpackung und Holzetui
Lieferzeit: 30 Arbeitstage
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 80 Einheiten pro Monate
Ausführliche Produkt-Beschreibung
PWB-Größe: 100*100mm~500*350mm PWB-Klammer; ing: justierbarer Druck pneumatisch
System: windows7 Software: r&d unabhängig
Anzeige: Touch Screen Monitor Eingabegerät: Tastatur, Maus
Nein der Kamera: 2 Energie: 380AC 50HZ
Energie consmption: 4KW Montagemodus: Gruppieren Sie Sammeln und trennen Sie setzend/unterschiedliches Sammeln und trennen Sie die Platzie
Komponenten-Raum: 0.2mm Zufuhrstationen: 30pcs
Düsen: 8PCS Montagegeschwindigkeit: 40000CPH
Montage-Höhe: 40mm





1.product details



HT-E5s machine is single module multifunctional mounter with high capacity of 40000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.



multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 0





2.product Technical parameters​  of high speed pick and place machine



multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 1



multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 2





 3.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • PCB clamping is adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 3



4.Packing & shipping of smt mounter machine




multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 4






5.Company profile



multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 5

multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 6



multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 7


multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 8






6.Our  Our certificates and certifications

multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 9





7.our services


multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 10



8. trade show


multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 11

















multifanctional high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 12







contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825













Industry related knowledge

  • Head sensor for mounting machine

Sensors can perform component electrical performance checks, they are like the eyes of the placement machine, always monitor the normal operation of the machine. The more sensors are used, the higher the intelligence level of multifunction placement machine is

  • Pressure sensor: in the multi-function placement machine, including the coupling cylinder and the vacuum generator, all have certain requirements for the air pressure. When the pressure is lower than the required pressure of the equipment, the machine can not operate normally. The pressure sensor always monitors the pressure change.
  • position sensor: the transmission positioning of the printed board, including the counting of the PCB, the real-time detection of the motion of the patch head and the worktable, the motion of the auxiliary mechanism, etc., all have strict requirements for the position, these positions need to be realized by the position sensor in the form of the current type.
  • Image sensor: real-time display of the working state of the placement machine, mainly using CCD image sensor, it can collect the desired image signal, including PCB position, device size, and computer analysis processing, so that the patch head to complete the adjustment and patch work.
  • Laser sensor: Laser has been widely used in placement machine, it can help judge the coplanarity of device pins. as the measured device is running to the monitoring position of the laser sensor, the beam emitted by the laser is irradiated to the IC pin and reflected to the laser reader. if the reflected beam back is the same length as the transmitted beam, the device coplanarity is qualified. when different, the reflected light beam becomes longer due to the upswing of the pin. the laser sensor thus recognizes that the device pin is defective.
  • Area sensor: when the placement machine is working, in order to operate safely on the patch head, it is usually provided with a sensor in the motion area of the patch head, and the operation space is monitored by photoelectric principle to prevent the damage caused by foreign objects.
