Produktdetails:
Zahlung und Versand AGB:
|
PWB-Größe: | Länge 250mm*any | PWB-Klammer; ing: | justierbarer Druck pneumatisch |
---|---|---|---|
System: | windows7 | Software: | r&d unabhängig |
Anzeige: | Touch Screen Monitor | Eingabegerät: | Tastatur, Maus |
Nein der Kamera: | 5 | Energie: | 380AC 50HZ |
Energie consmption: | 6kw | Montagemodus: | Gruppe zum, um anzubringen zu gruppieren zu nehmen und |
Komponenten-Raum: | 0.2mm | Zufuhrstationen: | 64PCS |
Düsen: | 64PCS | Montagegeschwindigkeit: | 200000CPH |
Montage-Höhe: | 13mm |
1.product details

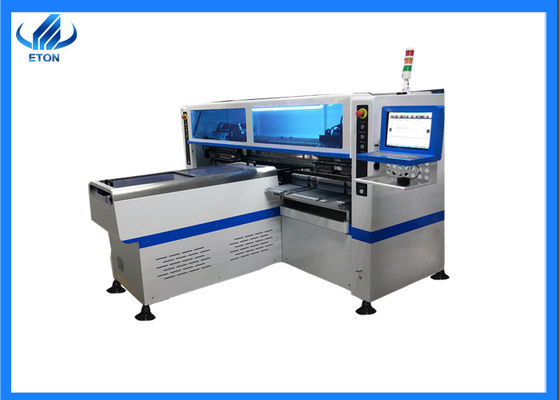

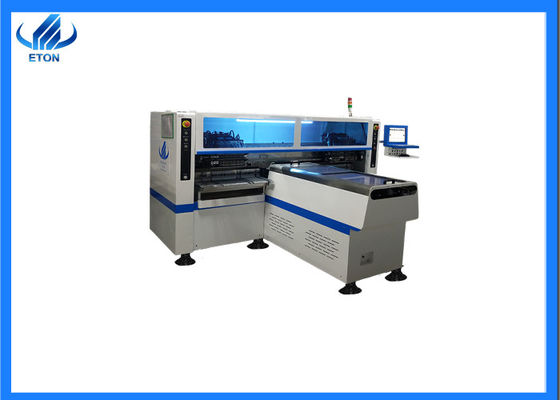

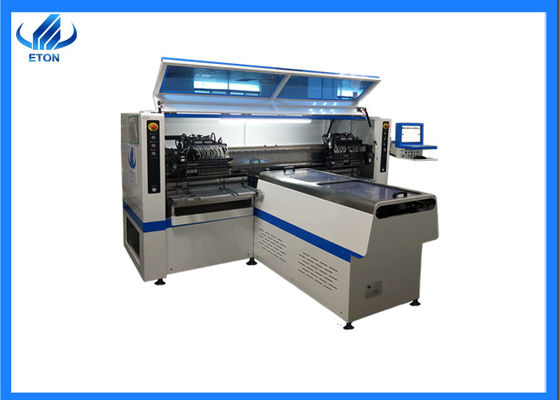

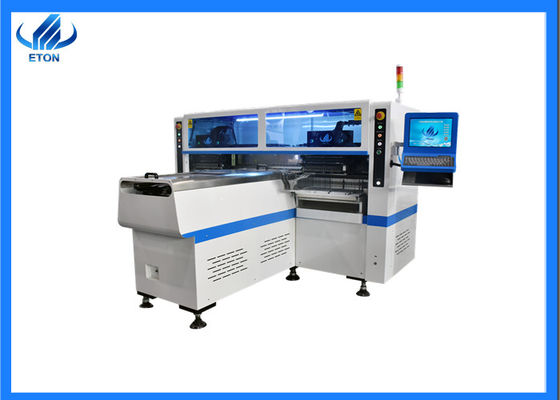

HT-X9 is dual-arm magnetic levitation LED high speed pick and place machine.the capacity reach 200000CPH.It is Suitable for 0.5M,1M Strip, Tube and Panel Light.it can mount LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
2.product Technical parameters of high speed pick and place machine
Model number | HT-T9 |
Dimension | 2450*2100*1550mm |
PCB size | 250mm*any length |
PCB thickness | 0.5~1.5mm |
PCB clamping | adjustable pressure pneumatic |
mounting mode | group to take and group to mount |
system | windows 7 |
display | touch screen monitor |
input device | keyboard,mouse |
NO.of camera | 5 sets of imported camera |
mounting precision | ±0.02mm |
mounting height | <13mm |
mounting speed | 200000CPH |
components space | 0.2mm |
NO.of feedings station | 64pcs |
NO.of nozzles | 64pcs |
power | 380AC 50HZ |
power consumption | 6KW |
operating environment | 23℃±3℃ |
conveyor transmission | any length |
transmission speed | >500mm/sec |
transmission direction | single(left→right,right→left) |
transmission mode | online drive |
position mode | optical |
Air Force | 0.5mpa |
electrical control | independent research and development by ETON |
motion control card module 1set | independent research and development by ETON |
X.Y axis drive way | high-end magnetic linear motor+servo motor |
feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4.Packing & shipping of smt mounter machine
5.Company profile
6.Our Our certificates and certifications
7.our services
8. trade show
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
With the increasing demand of electronic products for small, light, thin and high reliability, only the precise mount of fine spacing components can ensure the reliability of surface assembly mount. To accurately mount fine spacing components, generally consider the following factors.
