product details
Components: LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application:LED display

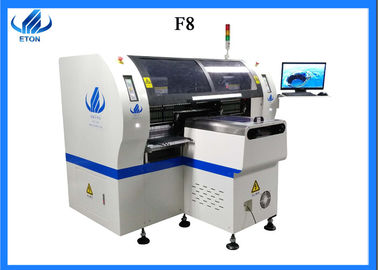

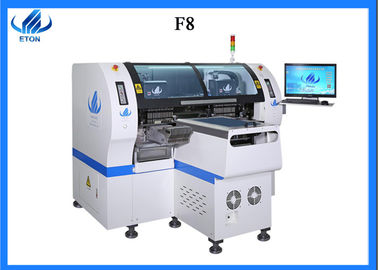

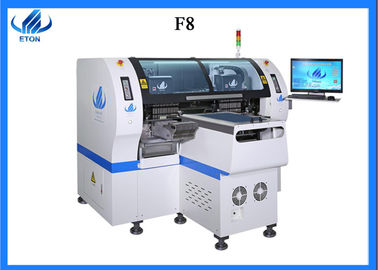

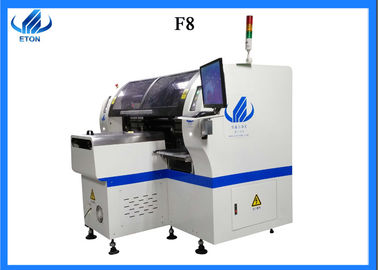

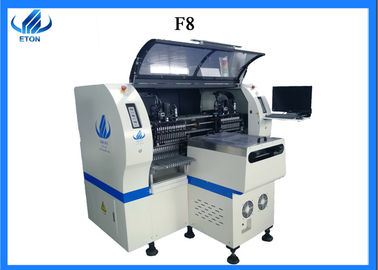

Components of pick and place machine ht-f8 can mount include LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
SMT mounter ht-f8 is especially applies to LED display. Max mounting height is 15mm,mounting speed is 150000CPH.
technical parameter of smt mounter ht-f8
| Model number |
HT-F8 |
| Dimension |
1600*1900*1550mm |
| PCB size |
80*110～345*600mm |
| PCB thickness |
0.5～5mm |
| mounting mode |
group to take and group to mount |
| system |
windows 7 |
| display |
LED monitor |
| input device |
keyboard,mouse |
| NO.of camera |
5 sets of imported camera |
| mounting precision |
±0.02mm |
| mounting height |
<15mm |
| mounting speed |
150000CPH |
| components space |
0.2mm |
| NO.of feedings station |
32pcs |
| NO.of nozzles |
32pcs |
| power |
220AC 50HZ |
| power consumption |
5KW |
| operating environment |
23℃±3℃ |
| conveyor transmission |
MAX length:1200mm |
| transmission speed |
>500mm/sec |
| transmission direction |
single(left→right,right→left) |
| transmission mode |
Auto online drive |
| position mode |
optical |
| air pressure |
>5.0kg/c㎡ |
| electrical control |
independent research and development by ETON |
| motion control card module 1set |
independent research and development by ETON |
| X.Y axis drive way |
servo motor |
| feeding way |
electric feeder with double motor |
product features of smt mounter ht-f8
- PCB clamping isadjustable pressure pneumatic.
- Vision for the flight identification ,mark correction.
- Electronic feeder feeding system.
- Non-stop material re-loading function.
- Auto-optimization after coordinates generated.
product parts of pick and place machine ht-f8
- Saline shaft from korea
- Mark camera from HK vision
- Grating scale from Renishaw,UK
- Guideway from IKO Japan
- Pneumatic components from SMC Japan
- Sensor from Beckhoff Germany
- Drag chain from IGUS Germany
