LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1
LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1

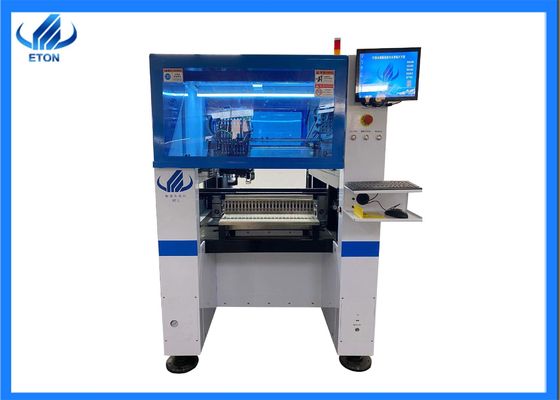

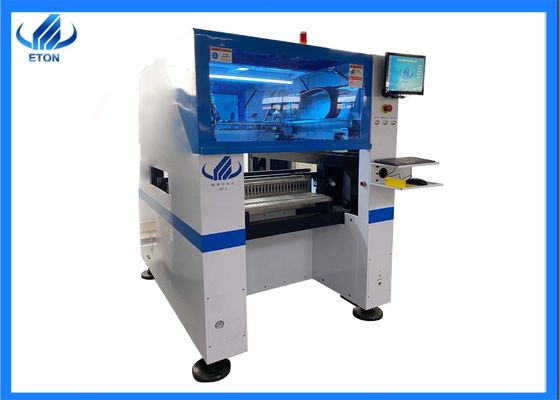

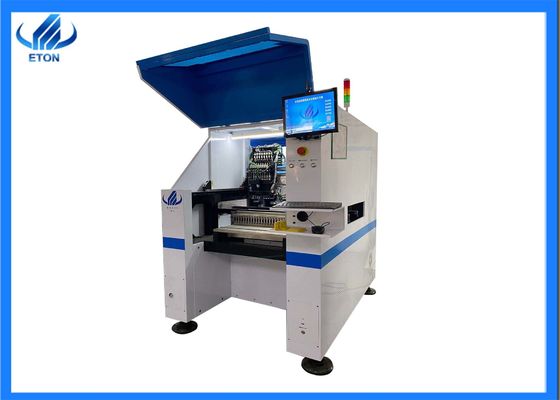

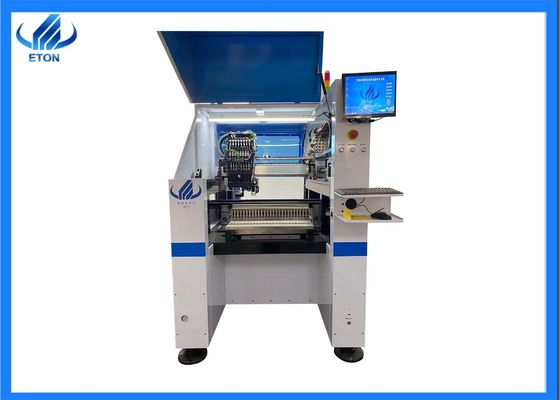

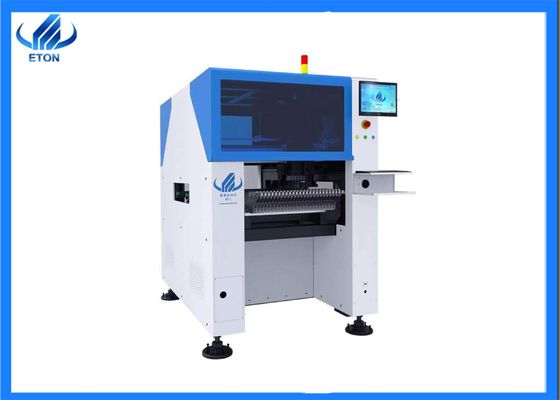

Großes Bild :  LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1

Produktdetails:
Herkunftsort: CHINA
Markenname: eton
Zertifizierung: ccc,ce,sira
Modellnummer: RT-1
Dokument: Produktbroschüre PDF
Zahlung und Versand AGB:
Min Bestellmenge: 1unit
Preis: $33000/unit
Verpackung Informationen: Wasserdichtes Material und Holzetui
Lieferzeit: 30days
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 80 Einheiten pro Monate
Kontakt
Ausführliche Produkt-Beschreibung

1. product details

Rt-1 is a single-module multifunctional mounting machine with a capacity of 30000CPH～35000CPH. The components that can be mounted include LED3014/3020/3528/5050, capacitors, resistors, IC and special-shaped components.it applies to LED light and electric board.

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 0



Technical parameter  of pick and place machine rt-1



Model numberrt-1
Dimension

1104*1584*1655mm
PCB size

50*50～400*350mm
PCB thickness 0.1～6mm
PCB clamping adjustable pressure pneumatic
mounting mode Group take cent stick, cent take cent stick
system windows 7
display touch screen monitor
input device keyboard,mouse

NO.of camera

  2sets of imported camera
mounting precision ±0.02mm
mounting height <40mm
mounting speed

30000～35000CPH
components space 0.2mm
NO.of feedings station 32pcs
NO.of nozzles 10pcs
power 380AC 50HZ
power consumption 4KW
operating environment 23℃±3℃
conveyor transmission MAX length:500mm
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode online drive
position mode optical
air pressure >5.0kg/c㎡
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way high-end magnetic linear motor+servo motor
feeding way electric feeder with double motor


LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 1


product features of smt mounter rt-1

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  •  Install 2 camera and adopt vision for the flight identification.
  • PCB clamping is electric clamping+adjustable pressure pneumatic
  • Vision for the flight identification ,mark correction
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 2


Product parts


LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 3


Business terms

Accepted delivery terms EXW, FOB, CIF, CFR
Accepted payment currency USD,CNY
Accepted payment type L/C, T/T
Nearest port

Shenzhen


our services

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 4

Company information
ETON automation equipment co., ltd. is a fast growing high-tech enterprise, we are committed to independent research and development, the quality and performance of the production of machine products have been comparable to international famous brands.
Our products are of high quality and low price. We can provide the best solution to optimize the placement of the production line. We can track customers' products throughout the whole process.
Buying our products can effectively improve production efficiency.
LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 5


Packing & shipping of smt mounter ht-e5s

Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
Lead time:

Quantity (units) Est. Time (days)
１－２ >２

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 6


Our certifications
The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained“shenzhen high-tech enterprise”,“national high-tech enterprise”, “shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.
LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 7


Trade shows
Since the establishment of the company, we have actively participated in relevant exhibitions held at home and abroad every year.
LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 8
LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 9

LED smt mounter magnetic linear motor multifunctional pick and place machine rt-1 10



contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
